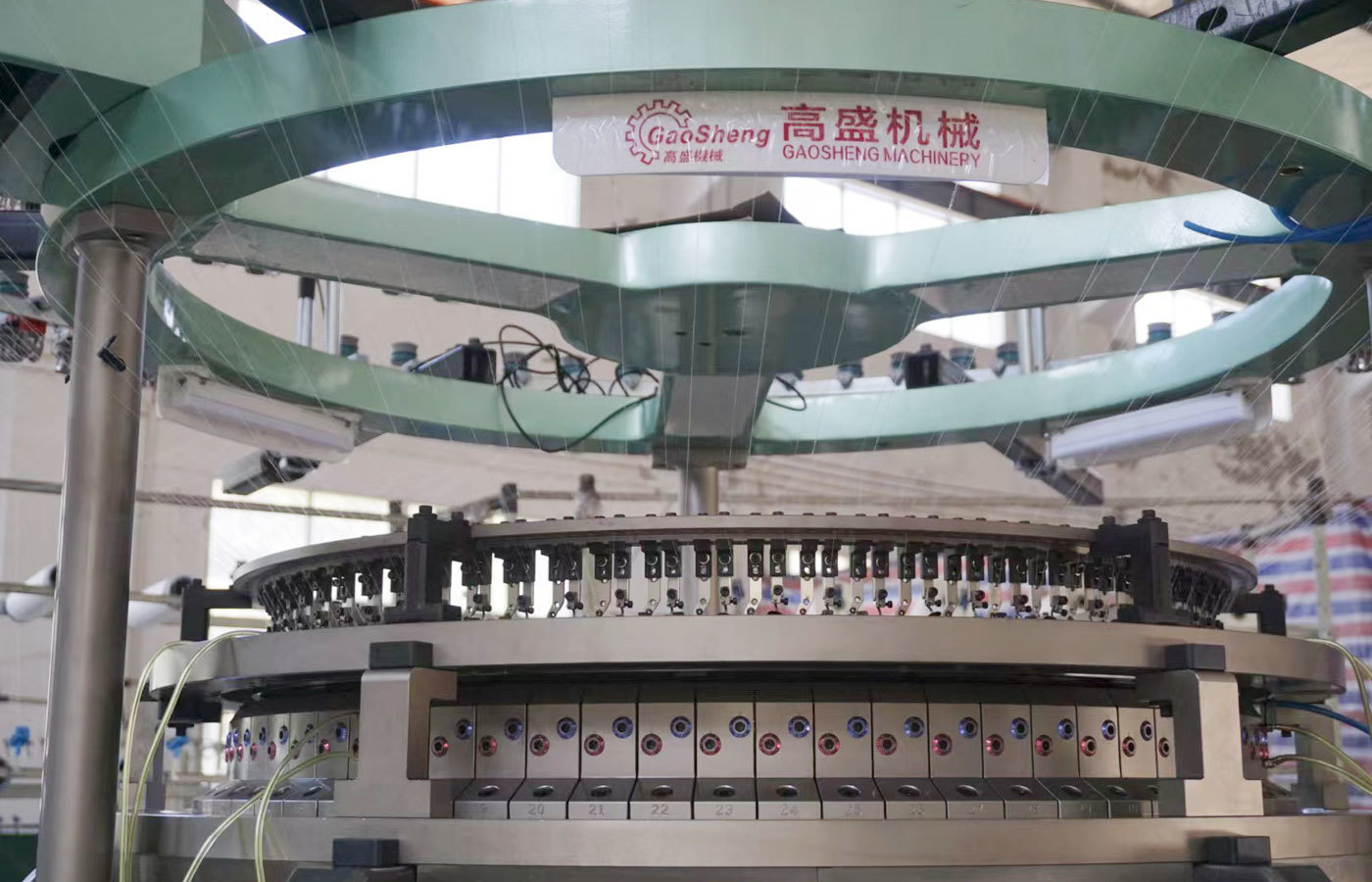

Single jersey computer jacquard cricular knitting machine

The machine use the computer needle selector to select the needle on the needle cylinder, can knitting the jacquard fabric with unlimited pattern range. The computer needle selector can be made into loop, miss and float three power position selector. The process pattern of any complex organization can be changed into a special control command through a computerized pattern preparation system. These instructions control a computerized needle selector on a machine to weave single jersey jacquard fabric.

Category:

Wang:

+86-13107809999

Elaine:

+86-13159067966

Messasge

elaine78999@hotmail.com

Product Description

Precision encoder can accurately calculate the position of the needle and correct zero, the encoder can also automatically correct the error caused by inertia when starting and stopping. Additional control system can check the encoder, determine whether the signal of the encoder is appropriate, so as to ensure the stability of the entire system to ensure the accuracy of needle selection.

TECHNICAL DATA
Diameters	26"-38" /1.8 Feeders per inch
	26"-38" /2 Feeders per inch
	26"-38"/2.1 Feeders per inch
Gauge	16G-32G
Feeders	46F-68F
	52F-76F
	54F-80F
RPM	13一20 R.P.M
Standard Equipment	Feeding units special used for computerized jacquard
	Automatic lubrication device
	Yarn feeding stop motion sensor, needle breakage detectors
	Take down system
	Automaitc cleaning device
	Yarn creel system
	Two or Three way needle selection system

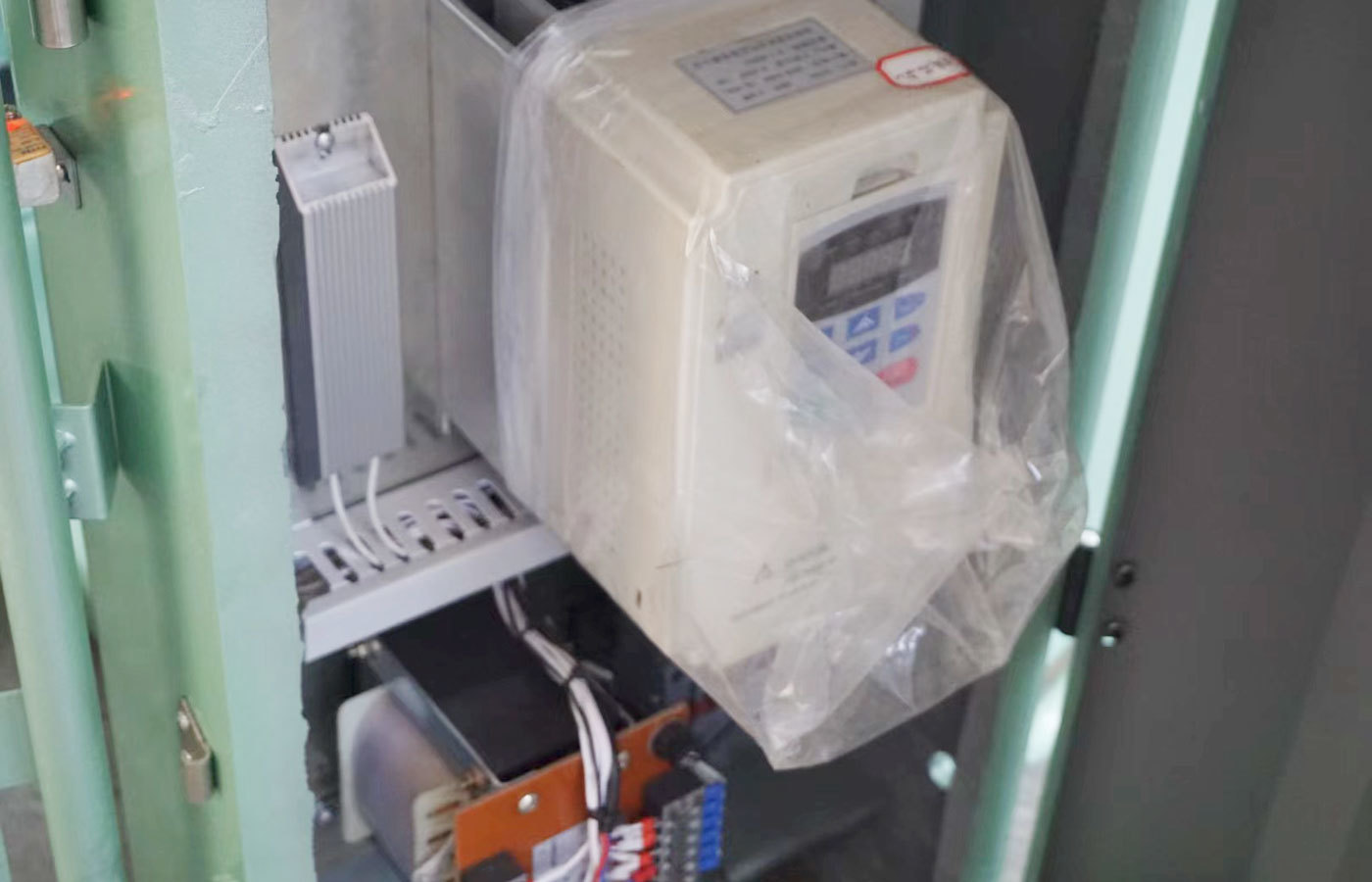

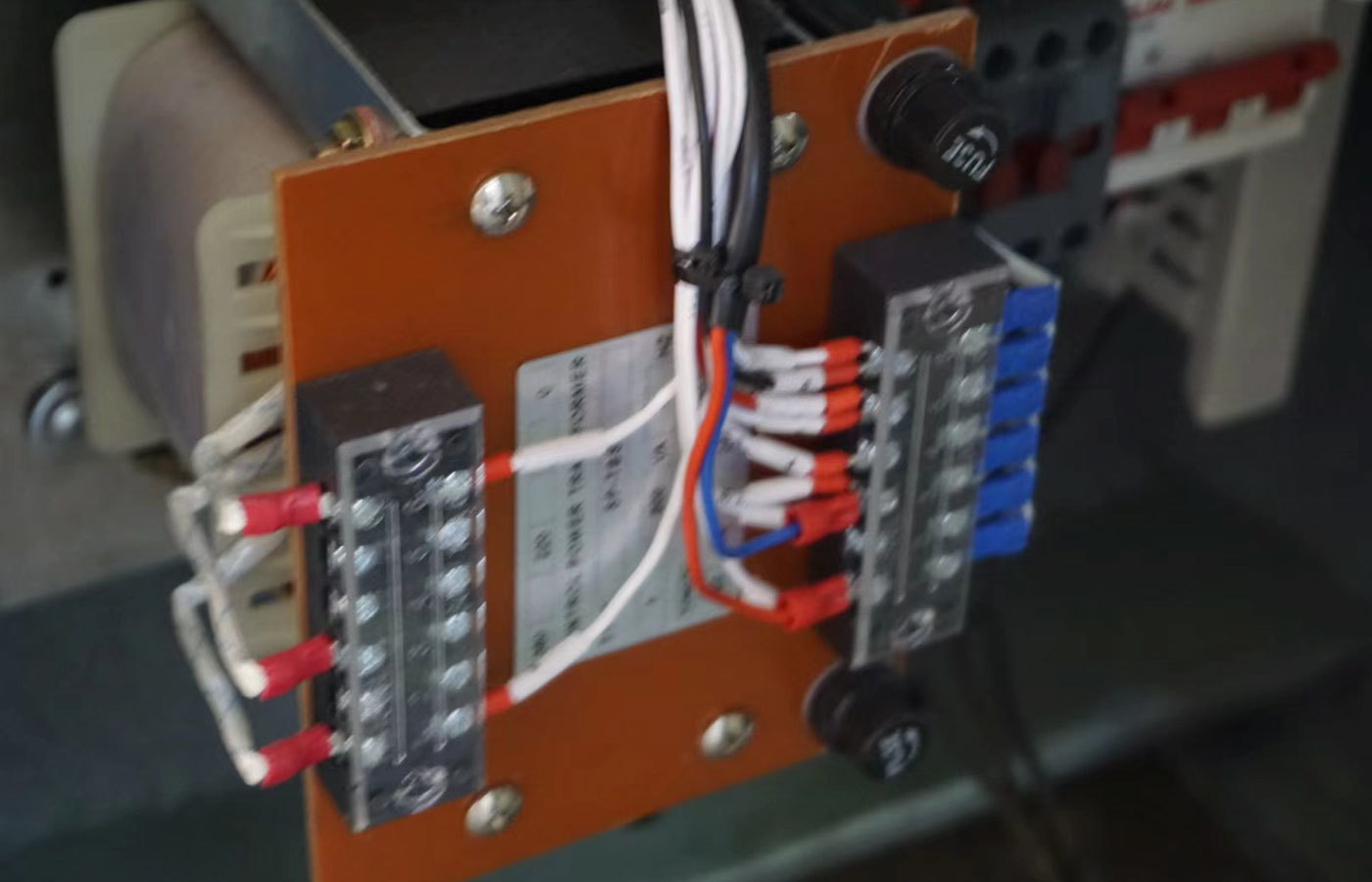

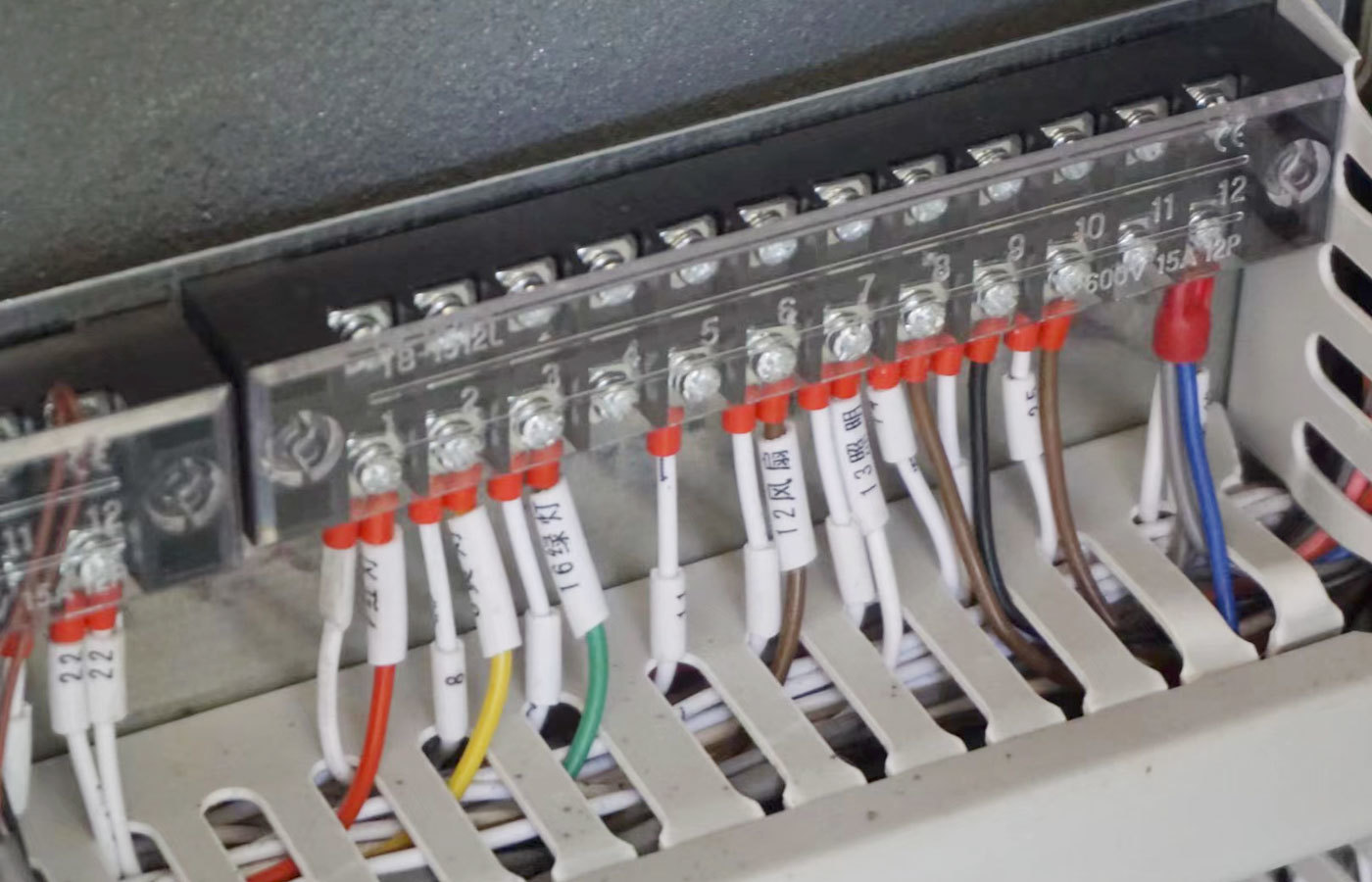

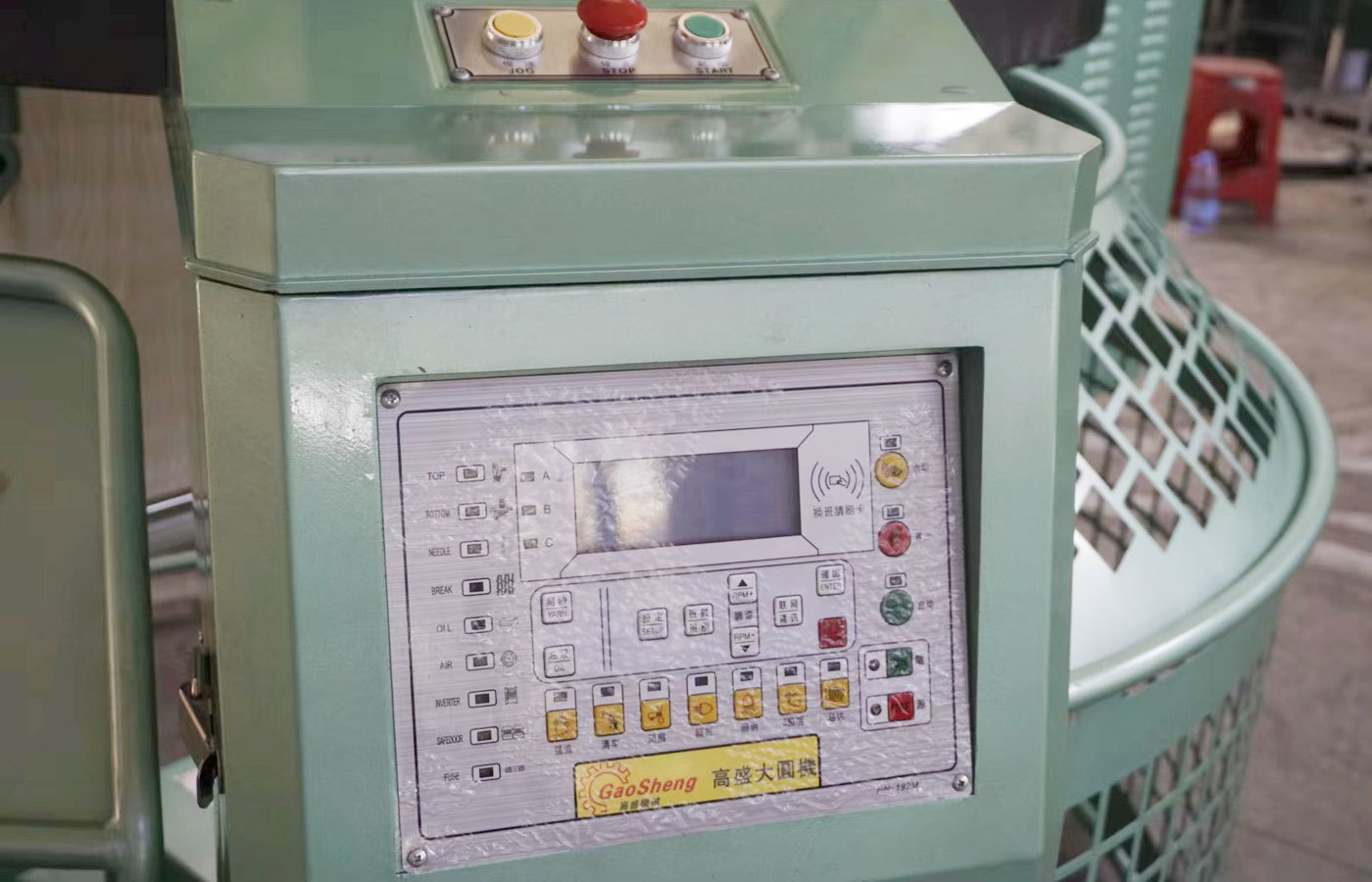

	Electric control cabinet special used for computerized jacquard
Optional Equipment	Lycra kits
	Lycra feeder units
	Folding device
	Yarn input measuring device
	Circular knitting machine networking system
